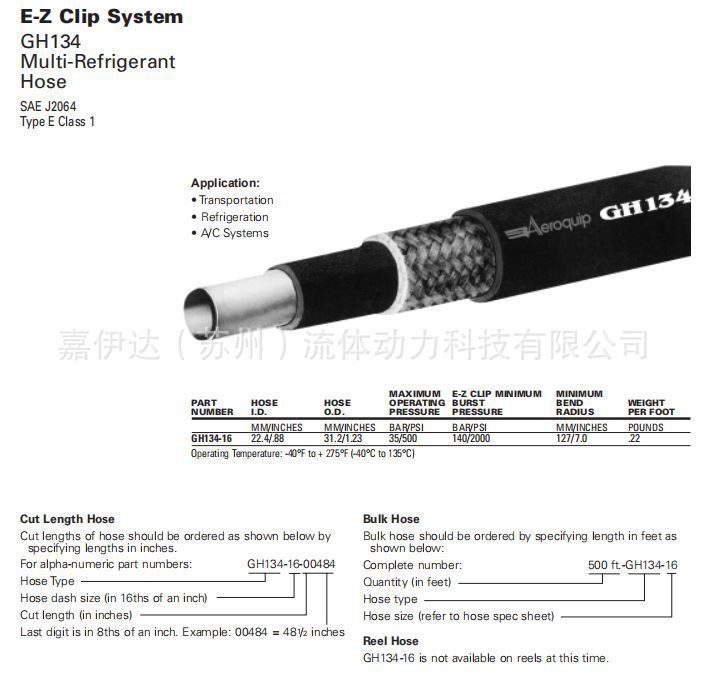

PART NUMBER |
HOSE I.D. |
HOSE O.D. |
OPERATING PRESSURE |
BURST PRESSURE |
BEND RADIUS |
WEIGHT PER FOOT |
|
MM/INCHES |
MM/INCHES BAR/PSI |
BAR/PSI |
MM/INCHES |
POUNDS |
||
|
GH134-16 |
22.4/.88 |
31.2/1.23 35/500 |
140/2000 |
127/7.0 |
.22 |
|
Operating Temperature: -40°F to + 275°F (-40°C to 135°C)
Cut Length Hose
Cut lengths of hose should be ordered as shown below by specifying lengths in inches.
For alpha-numeric part numbers: GH134-16-00484 Hose Type
Hose dash size (in 16ths of an inch) Cut length (in inches)
Last digit is in 8ths of an inch. Example: 00484 = 481/2 inches
Bulk Hose
Bulk hose should be ordered by specifying length in feet as shown below:
Complete number:500 ft.-GH134-16 Quantity (in feet)
Hose type
Hose size (refer to hose spec sheet)
Reel Hose
GH134-16 is not available on reels at this time.
